Description

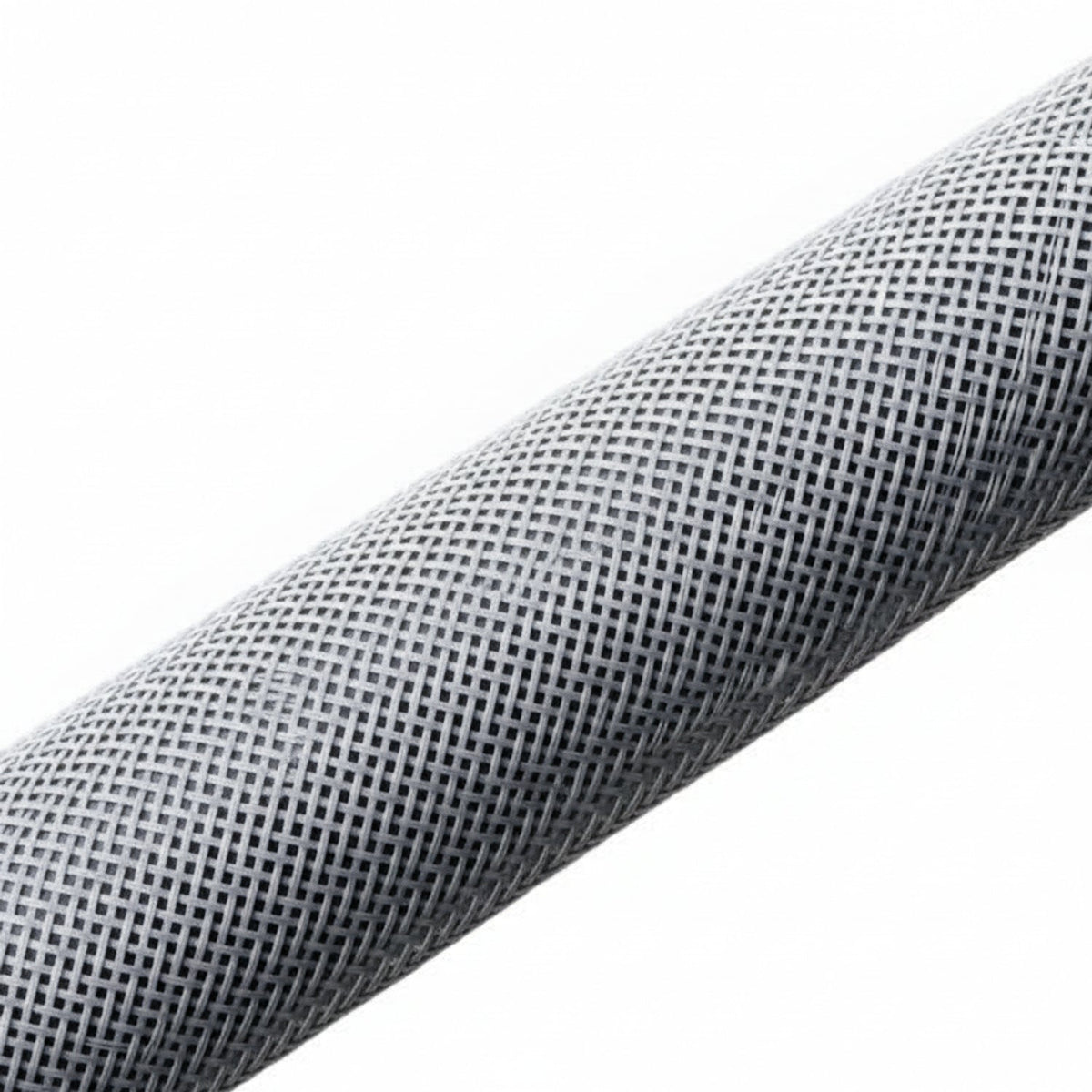

HellermannTyton 170-03074 Braided Sleeving, Expandable, Flame Retardant, .75" Dia, PET, Gray, 75 ft/reel
Length: 75ft
Bundle Diameter Min: 0.5
Bundle Diameter Max: 1.25
Diameter: 0.75
Nominal Diameter: 3/4
Color: Gray
Qty/Bag: 1
Material: Polyester (PET)
Material Shortcut: PET
Flammability: Mil-202 FAR 25 UL VW-1 FMVSS 302
Halogen free: Yes
Operating Temperature (Metric): -94°F to +257°F (-70°C to +120°C)
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
UL Recognized (US): Yes
UL Recognized (US and Canada): Yes
Features & Benefits
• Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required.
• Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation.
