Part Number: PWMS-H25-M

Package Quantity: 1000

Specifications:

Length: 0.71"
Width: 0.37"
Height: 0.62"
Mounting Hole Diameter: 0.25"
Max Panel Thickness: 0.105"
Material: Nylon 6.6
Color: Natural
Mounting Type: Push barb (winged/arrowhead for secure retention and high-vibration applications)

Description:

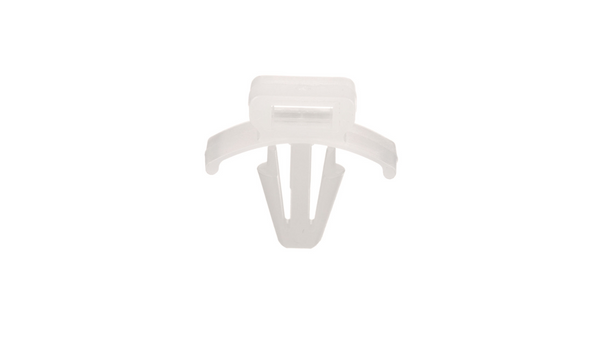

The Panduit PWMS-H25-M is a winged push barb cable tie mount designed for quick, tool-free installation into a pre-drilled hole (0.229"–0.255" / 5.8 mm–6.5 mm diameter, max panel thickness 0.105" / 2.7 mm). The winged barb design applies pressure to the panel wall for enhanced retention and security, especially in high-vibration environments. Made from durable nylon 6.6, it provides excellent mechanical strength, heat resistance, wear resistance, and stiffness. It supports bundling and routing with miniature, intermediate, or standard cross-section Pan-Ty® cable ties. The natural color suits general indoor applications, requiring no adhesive or additional hardware for mounting. Ideal for low-profile, reliable wire management without screws.

Applications:

Cable and wire routing/organization
Structured cabling systems
Electrical panel and control box installations
Networking and data center wiring management
Indoor applications in machinery, enclosures, racks, automotive, and harness assemblies where push-mount installation and vibration resistance are beneficial

Panduit PWMS-H25-M Winged Push Barb Cable Tie Mount, Natural, Nylon 6.6, 0.71" Length, 1000/Bag
